Beam Lattice Structure using beam model with geometric nonlinearities

import fedoo as fd
import numpy as np

E = 1e5
nu = 0.3
radius = 1
k = 0.9  # reduce section. k=0 to neglect the shear effect
n = 6  # n_nodes
ndim = 3
if ndim == 2:
    fd.ModelingSpace("2D")
else:
    fd.ModelingSpace("3D")

material = fd.constitutivelaw.ElasticIsotrop(E, nu)
beam_props = fd.constitutivelaw.BeamCircular(material, radius, k=k)

# Extract a Lattice Mesh from a 3D mesh
if ndim == 2:
    mesh = fd.mesh.extract_edges(
        fd.mesh.rectangle_mesh(n, n, x_max=100, y_max=100, ndim=ndim)
    )
else:
    mesh = fd.mesh.extract_edges(
        fd.mesh.box_mesh(n, n, n, x_max=100, y_max=100, z_max=100)
    )

nodes_left = mesh.find_nodes("X", mesh.bounding_box.xmin)
nodes_right = mesh.find_nodes("X", mesh.bounding_box.xmax)

wf = fd.weakform.BeamEquilibrium(beam_props)

assembly = fd.Assembly.create(wf, mesh)

pb = fd.problem.NonLinear(assembly, nlgeom=True)
results = pb.add_output("test", assembly, ["Disp", "Rot", "BeamStress", "BeamStrain"])

pb.bc.add("Dirichlet", nodes_left, ["Disp", "Rot"], 0)
pb.bc.add("Dirichlet", nodes_right, "DispY", -50)

pb.set_nr_criterion("Displacement", tol=5e-3, max_subiter=10)
pb.nlsolve(dt=0.02, update_dt=True, print_info=0)

# Post treatment
results = pb.get_results(assembly, ["Disp", "Rot", "BeamStress"])

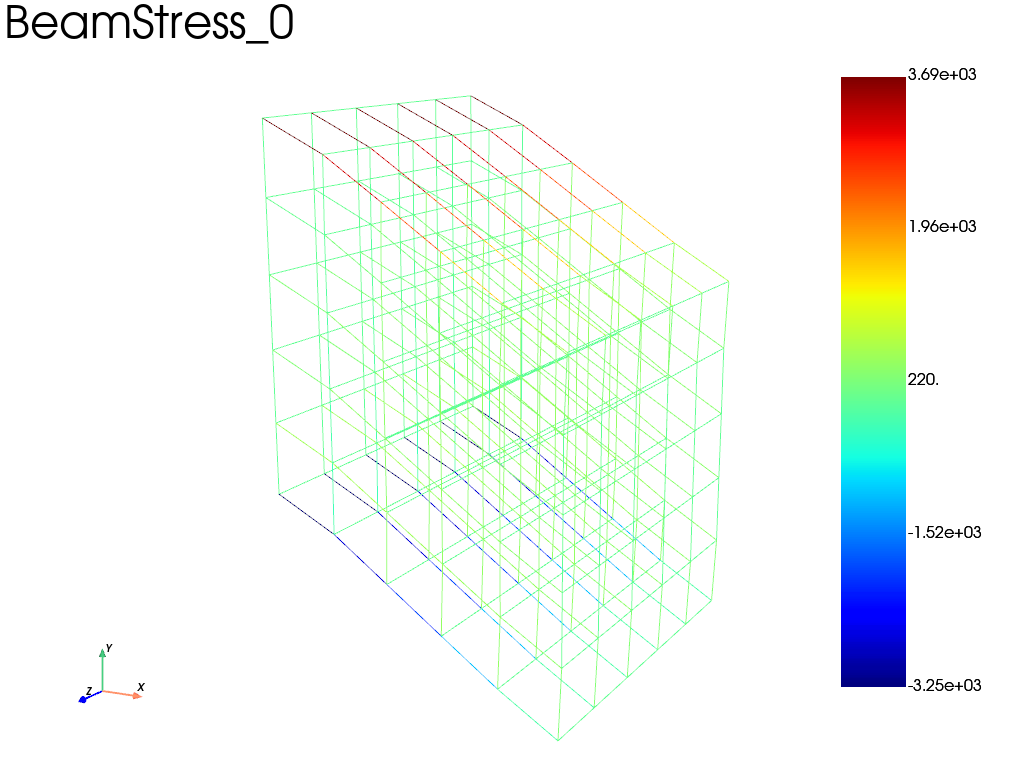

results.plot("BeamStress", 0)
