Mean motion torsion

Compare two ways of imposing a torsion on the right face of a cube:

• RigidTie enforces a rigid motion of every node on the right face.

• MeanMotion prescribes only the best-fit mean rotation of the face, so local warping of the right face remains possible.

import numpy as np
import pyvista as pv
import fedoo as fd


fd.ModelingSpace("3D")

NLGEOM = "UL"
E = 200e3
nu = 0.3
L = 2.0
ANGLE = np.pi / 3  # 0.10
PRINT_INFO = 0


def make_model(label):
    mesh = fd.mesh.box_mesh(
        nx=8,
        ny=12,
        nz=12,
        x_min=0.0,
        x_max=L,
        y_min=-1.0,
        y_max=1.0,
        z_min=-1.0,
        z_max=1.0,
        elm_type="hex8",
        name=f"torsion_{label}_mesh",
    )

    material = fd.constitutivelaw.ElasticIsotrop(E, nu, name=f"material_{label}")
    wf = fd.weakform.StressEquilibrium(material, nlgeom=NLGEOM, name=f"wf_{label}")
    assembly = fd.Assembly.create(wf, mesh, "hex8", name=f"assembly_{label}")

    pb = fd.problem.NonLinear(assembly, nlgeom=NLGEOM, name=f"problem_{label}")
    # pb.set_nr_criterion("Displacement", err0=1, tol=1e-3, max_subiter=20)
    return mesh, assembly, pb


def solve_rigid_tie_case():
    mesh, assembly, pb = make_model("rigid")
    left = mesh.find_nodes("X", mesh.bounding_box.xmin)
    right = mesh.find_nodes("X", mesh.bounding_box.xmax)

    pb.bc.add(fd.constraint.RigidTie(right))
    pb.bc.add("Dirichlet", left, "Disp", 0.0)
    pb.bc.add("Dirichlet", "RigidRotX", ANGLE)

    pb.nlsolve(dt=0.1, tmax=1.0, update_dt=True, print_info=PRINT_INFO)

    moment = pb.get_ext_forces("RigidRotX")[0]
    disp = pb.get_dof_solution("Disp")
    return pb, assembly, moment


def solve_mean_motion_case():
    mesh, assembly, pb = make_model("mean")
    left = mesh.find_nodes("X", mesh.bounding_box.xmin)
    right = mesh.find_nodes("X", mesh.bounding_box.xmax)
    right_surface = fd.mesh.extract_surface(mesh, node_set=right, reduce_order=False)

    mean_motion = fd.constraint.MeanMotion(
        right_surface,
        components=["Rot"],
    )
    pb.bc.add(mean_motion)
    pb.bc.add("Dirichlet", left, "Disp", 0.0)
    pb.bc.add("Dirichlet", "MeanRotX", ANGLE)
    # pb.bc.add("Dirichlet", ["MeanDispX", "MeanDispY", "MeanDispZ"], [0.4, -1, 0])

    pb.nlsolve(dt=0.1, tmax=1.0, update_dt=True, print_info=PRINT_INFO)

    moment = pb.get_ext_forces("MeanRotX")[mean_motion.node_by_variable["MeanRotX"]]
    disp = pb.get_dof_solution("Disp")
    return pb, assembly, moment


rigid_pb, rigid_assembly, rigid_moment = solve_rigid_tie_case()
mean_pb, mean_assembly, mean_moment = solve_mean_motion_case()

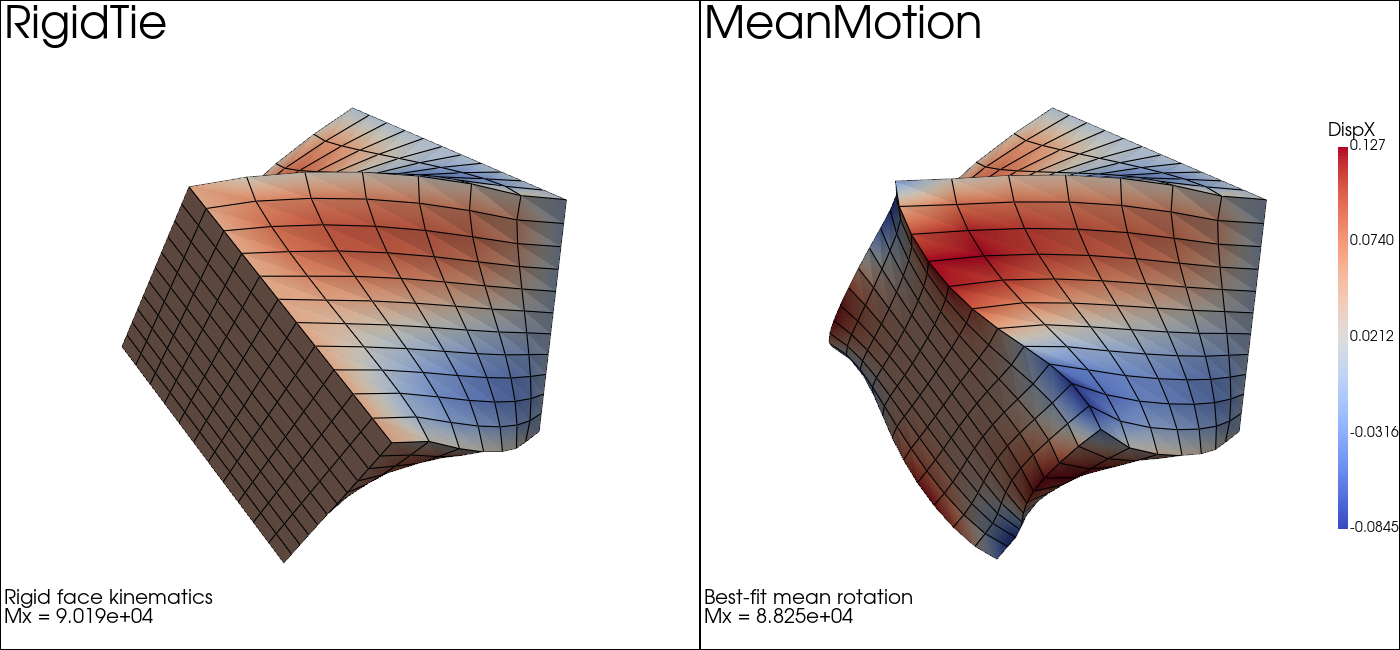

Plot the two constraints side by side

The deformed shapes are colored by the axial displacement DispX. The rigid tie keeps the right face rigid, while the mean-motion constraint only enforces the best-fit rotation and lets the face warp locally.

rigid_res = rigid_pb.get_results(rigid_assembly, ["Disp", "Stress"], "Node")
mean_res = mean_pb.get_results(mean_assembly, ["Disp", "Stress"], "Node")

disp_x_rigid = rigid_res.get_data("Disp", component="X", data_type="Node")
disp_x_mean = mean_res.get_data("Disp", component="X", data_type="Node")
disp_x_lim = [
    min(np.min(disp_x_rigid), np.min(disp_x_mean)),
    max(np.max(disp_x_rigid), np.max(disp_x_mean)),
]

plotter = pv.Plotter(shape=(1, 2), window_size=(1400, 650))

plotter.subplot(0, 0)
rigid_res.plot(
    "Disp",
    component="X",
    data_type="Node",
    scale=1,
    clim=disp_x_lim,
    cmap="coolwarm",
    show_edges=True,
    show_scalar_bar=False,
    lock_view=True,
    plotter=plotter,
    title="RigidTie",
)
plotter.hide_axes()
plotter.add_text(
    "Rigid face kinematics\n" f"Mx = {rigid_moment:.3e}\n",
    position="lower_left",
    font_size=10,
)

plotter.subplot(0, 1)
mean_res.plot(
    "Disp",
    component="X",
    data_type="Node",
    scale=1,
    clim=disp_x_lim,
    cmap="coolwarm",
    show_edges=True,
    show_scalar_bar=False,
    lock_view=True,
    plotter=plotter,
    title="MeanMotion",
)
plotter.hide_axes()
plotter.add_text(
    "Best-fit mean rotation\n" f"Mx = {mean_moment:.3e}\n",
    position="lower_left",
    font_size=10,
)
plotter.add_scalar_bar(
    title="DispX",
    vertical=True,
    position_x=0.91,
    position_y=0.18,
    height=0.62,
    width=0.04,
    title_font_size=18,
    label_font_size=14,
)

plotter.link_views()
plotter.view_isometric()
plotter.show()
