Lattices

Octet-truss

from pathlib import Path

import cadquery as cq
import numpy as np

from microgen import Cylinder, Phase, Rve, cutPhases, meshPeriodic, periodic

# ----------LOADTXT------------------------------------------------------------------------------------------#

# dir = os.path.dirname(os.path.realpath("__file__"))
# # path
# path_data = dir + "/"
# Ngeomphase_file = "test_octet.dat"

# # fichier
# NPhases_file = path_data + Ngeomphase_file
NPhases_file = str(Path(__file__).parent / "test_octet.dat")

dt = np.dtype(
    [
        ("number", int),
        ("shape", np.str_, 10),
        ("xc", np.float64),
        ("yc", np.float64),
        ("zc", np.float64),
        ("psi", np.float64),
        ("theta", np.float64),
        ("phi", np.float64),
        ("a1", np.float64),
        ("a2", np.float64),
    ]
)
# précision du type des données
DATA = np.loadtxt(
    NPhases_file,
    dtype=dt,
    usecols=(0, 1, 2, 3, 4, 5, 6, 7, 8, 9),
    skiprows=1,
    unpack=True,
    ndmin=1,
)

xc = DATA[2]
yc = DATA[3]
zc = DATA[4]
psi = DATA[5]
theta = DATA[6]
phi = DATA[7]
height = DATA[8]
radius = DATA[9]

# sections = read_sections(path_data,section_file)

rve = Rve(dim=1)
listPhases = []
listPeriodicPhases = []

n = len(xc)

for i in range(0, n):
    elem = Cylinder(
        center=(xc[i] - 0.5, yc[i] - 0.5, zc[i] - 0.5),
        orientation=(psi[i], theta[i], phi[i]),
        height=height[i],
        radius=radius[i],
    )
    listPhases.append(Phase(shape=elem.generate()))

for phase_elem in listPhases:
    periodicPhase = periodic(phase=phase_elem, rve=rve)
    listPeriodicPhases.append(periodicPhase)

phases_cut = cutPhases(phaseList=listPeriodicPhases, reverseOrder=False)
compound = cq.Compound.makeCompound([phase.shape for phase in phases_cut])

step_file = str(Path(__file__).parent / "octettruss.step")
stl_file = str(Path(__file__).parent / "octettruss.stl")
cq.exporters.export(compound, step_file)
cq.exporters.export(compound, stl_file)

vtk_file = str(Path(__file__).parent / "octettruss.vtk")
meshPeriodic(
    mesh_file=step_file,
    rve=rve,
    listPhases=phases_cut,
    order=1,
    size=0.03,
    output_file=vtk_file,
)

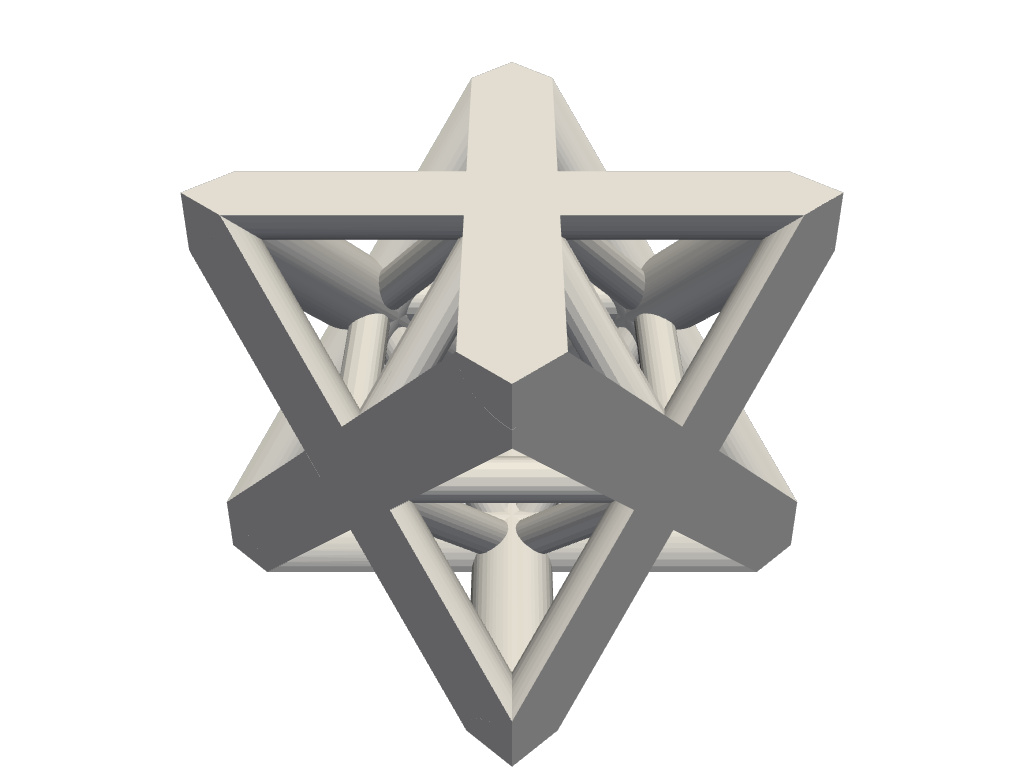

../_images/octettruss.png

Honeycomb

from pathlib import Path

import cadquery as cq
import numpy as np

from microgen import Box, ExtrudedPolygon, Phase, cutPhaseByShapeList, mesh

side_length = 2.5  # side in mm of the hexagon
poly_height = 2.5  # height in mm of the hexagon
theta = 30 * np.pi / 180  # half angle of the hexagone

h0 = 0.5 * poly_height
h1 = np.cos(theta) * side_length
h2 = abs(np.sin(theta) * side_length)

thickness = 30  # mm

data_file = str(Path(__file__).parent / "seedList.data")
with open(data_file) as f:
    seedList = [[1, 1, 1]]
    seedList = np.genfromtxt(f, delimiter="\t")

box = Box(dim=(thickness, 60, 60))

shapeList = []
for seed in seedList:
    poly = ExtrudedPolygon(
        center=(seed[0] - thickness, seed[1], seed[2]),
        listCorners=[
            (0, h2 + h0),
            (h1, h0),
            (h1, -h0),
            (0, -h2 - h0),
            (-h1, -h0),
            (-h1, h0),
            (0, h2 + h0),
        ],
        height=thickness,
    )
    shapeList.append(poly.generate())

boxPhase = Phase(shape=box.generate())

honeycomb = cutPhaseByShapeList(phaseToCut=boxPhase, cqShapeList=shapeList)

step_file = str(Path(__file__).parent / "honeycomb.step")
stl_file = str(Path(__file__).parent / "honeycomb.stl")
cq.exporters.export(honeycomb.shape, step_file)
cq.exporters.export(honeycomb.shape, stl_file)
vtk_file = str(Path(__file__).parent / "honeycomb.vtk")
mesh(
    mesh_file=step_file,
    listPhases=[honeycomb],
    size=1,
    order=1,
    output_file=vtk_file,
)

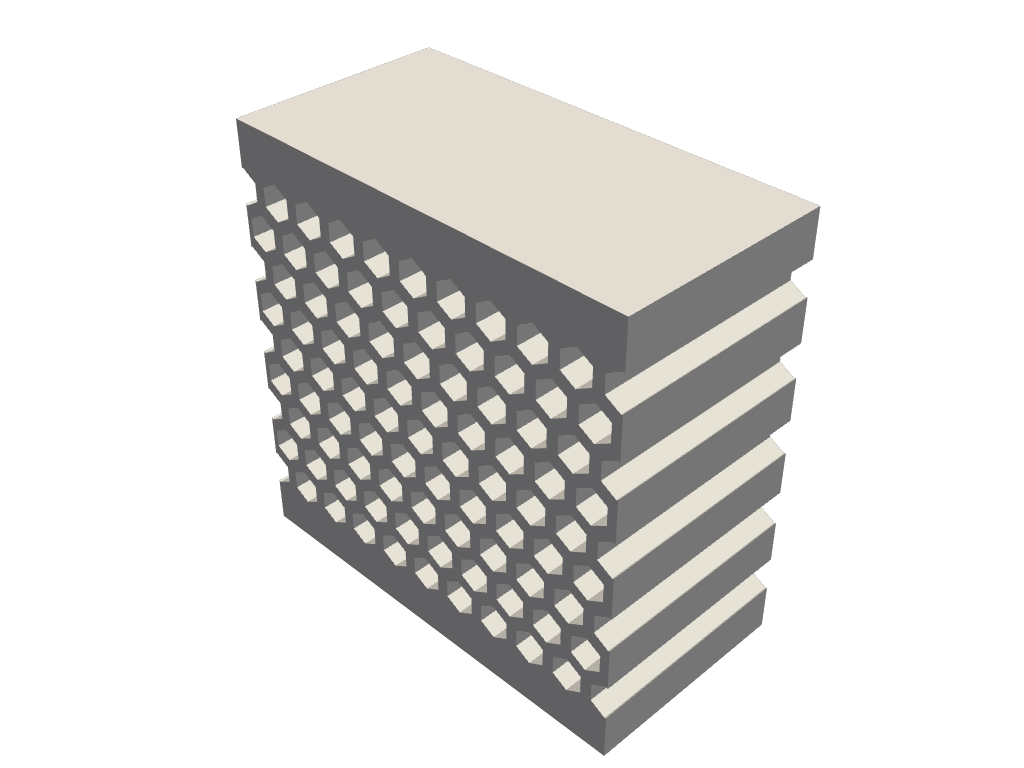

../_images/honeycomb.png

Preset strut-based lattices

from pathlib import Path

import numpy as np
import pyvista as pv

from microgen import (
    BodyCenteredCubic,
    Cubic,
    Cuboctahedron,
    Diamond,
    FaceCenteredCubic,
    Octahedron,
    OctetTruss,
    RhombicCuboctahedron,
    RhombicDodecahedron,
    TruncatedCube,
    TruncatedCuboctahedron,
    TruncatedOctahedron,
)

preset_lattice_list = [
    BodyCenteredCubic(strut_radius=0.1),
    Cubic(strut_radius=0.1),
    Cuboctahedron(strut_radius=0.1),
    Diamond(strut_radius=0.1),
    FaceCenteredCubic(strut_radius=0.1),
    Octahedron(strut_radius=0.1),
    OctetTruss(strut_radius=0.1),
    RhombicCuboctahedron(strut_radius=0.1),
    RhombicDodecahedron(strut_radius=0.1),
    TruncatedCube(strut_radius=0.1),
    TruncatedCuboctahedron(strut_radius=0.1),
    TruncatedOctahedron(strut_radius=0.1),
]

meshes = pv.PolyData()

N_COL = 4
n_row = np.ceil(len(preset_lattice_list) / N_COL)
for i, lattice in enumerate(preset_lattice_list):
    i_x = i % N_COL
    i_y = i // N_COL
    mesh = lattice.generate_vtk()
    mesh.translate(
        [1.2 * (i_x - 0.5 * (N_COL - 1)), -1.2 * (i_y - 0.5 * (n_row - 1)), 0],
        inplace=True,
    )
    meshes.append_polydata(mesh, inplace=True)

stl_file = Path(__file__).parent / "lattices.stl"
meshes.save(stl_file)
../_images/lattices.png

Custom strut-based lattices

from itertools import product
from pathlib import Path

import cadquery as cq
import numpy as np

from microgen import CustomLattice

# Generate custom auxetic strut lattice based on
# DOI:10.1007/s00707-019-02387-x and
# https://doi.org/10.1016/j.ijmecsci.2017.05.048

theta = np.pi / 3
l2 = 1.0 / (2.0 * np.sin(theta))  # l
l1 = 0.5 + l2 * np.cos(theta)  # h
l3 = (l1 / 2.0) - np.cos(theta)

outer_cube_vertices = np.array(list(product([-0.5, 0.5], repeat=3)))
z_axis_faces_centers = np.array([[0, 0, z] for z in [0.5, -0.5]])
z_axis_reentrant_vertices = np.array([[0, 0, z] for z in [l3, -l3]])
xy_face_reentrant_vertices = np.array(
    [[x, y, z] for x, y in product([0.5, -0.5], [0.0]) for z in [l1 / 2, -l1 / 2]]
    + [[x, y, z] for x, y in product([0.0], [0.5, -0.5]) for z in [l1 / 2, -l1 / 2]]
)
outer_cube_edges_reentrant_vertices = np.array(
    list(product([0.5, -0.5], [0.5, -0.5], [l3, -l3]))
)
base_vertices = np.vstack(
    [
        outer_cube_vertices,
        outer_cube_edges_reentrant_vertices,
        xy_face_reentrant_vertices,
        z_axis_faces_centers,
        z_axis_reentrant_vertices,
    ]
)

strut_heights = np.array([l1] * 4 + [l2] * 24 + [l3 + 0.5] * 10)

l1_strut_vertex_pairs = np.array([[16, 17], [20, 21], [18, 19], [22, 23]])
l2_strut_vertex_pairs = np.array(
    [
        [18, 15],
        [19, 14],
        [18, 13],
        [12, 19],
        [15, 22],
        [14, 23],
        [23, 10],
        [11, 22],
        [11, 16],
        [10, 17],
        [16, 9],
        [8, 17],
        [9, 20],
        [8, 21],
        [13, 20],
        [12, 21],
        [20, 27],
        [18, 27],
        [27, 22],
        [16, 27],
        [23, 26],
        [17, 26],
        [26, 21],
        [26, 19],
    ]
)
half_l1_strut_vertex_pairs = np.array(
    [
        [9, 7],
        [11, 5],
        [8, 6],
        [10, 4],
        [26, 25],
        [12, 2],
        [13, 3],
        [27, 24],
        [15, 1],
        [14, 0],
    ]
)

strut_vertex_pairs = np.vstack(
    [l1_strut_vertex_pairs, l2_strut_vertex_pairs, half_l1_strut_vertex_pairs]
)

auxetic_lattice = CustomLattice(
    strut_radius=0.1,
    strut_heights=strut_heights,
    base_vertices=base_vertices,
    strut_vertex_pairs=strut_vertex_pairs,
    strut_joints=True,
)

shape = auxetic_lattice.generate()
stl_file = Path(__file__).parent / "auxetic_custom_lattice.stl"
cq.exporters.export(shape, stl_file.name)

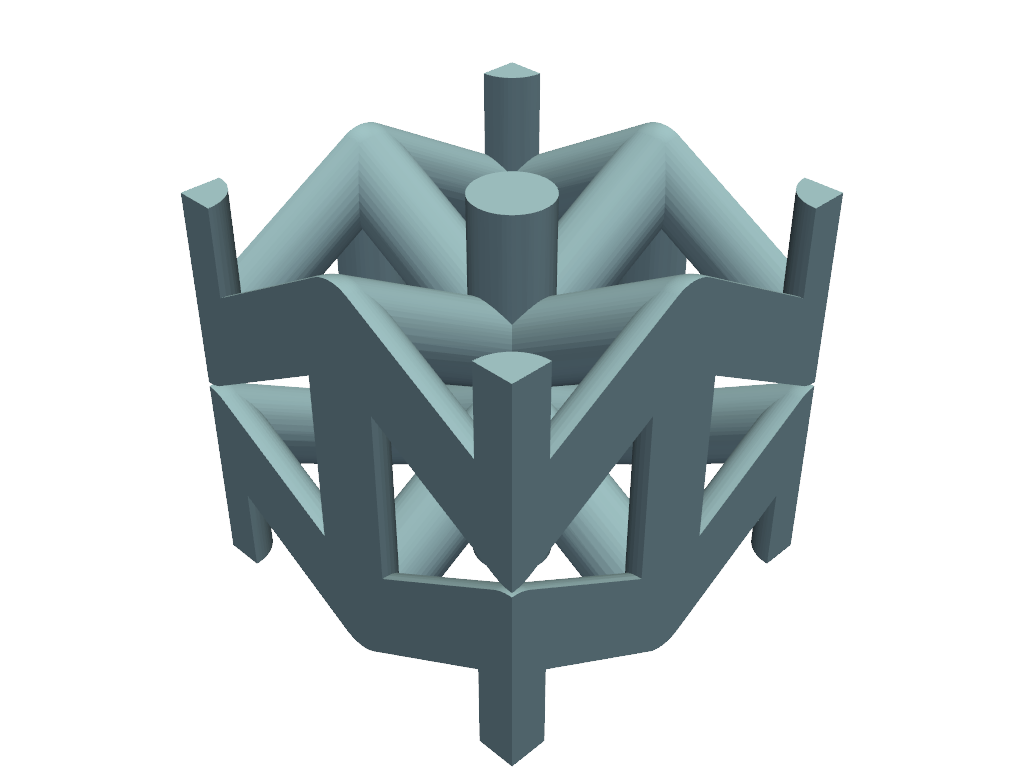

../_images/auxetic_custom_lattice.png
