Cow bouncing on a plane — NonLinear + IPC contact.

The cow mesh from PyVista is watertight (2903 nodes), decimated for speed. Full rotation via quaternion, rotation vectors (no gimbal lock).

============================================================
COW BOUNCE — NonLinear + IPC contact
============================================================
  Cow: 292 nodes, mass=1.0kg
    t=0.00s  z=0.549m  contacts=0
    t=0.25s  z=0.276m  contacts=0
    t=0.50s  z=0.147m  contacts=0
    t=0.75s  z=0.127m  contacts=0
    t=1.00s  z=0.150m  contacts=0
    t=1.25s  z=0.082m  contacts=0
    t=1.50s  z=0.120m  contacts=0
    t=1.75s  z=0.099m  contacts=0

  4001 steps in 102.5s (25.6ms/step)
  z_min=0.0564m

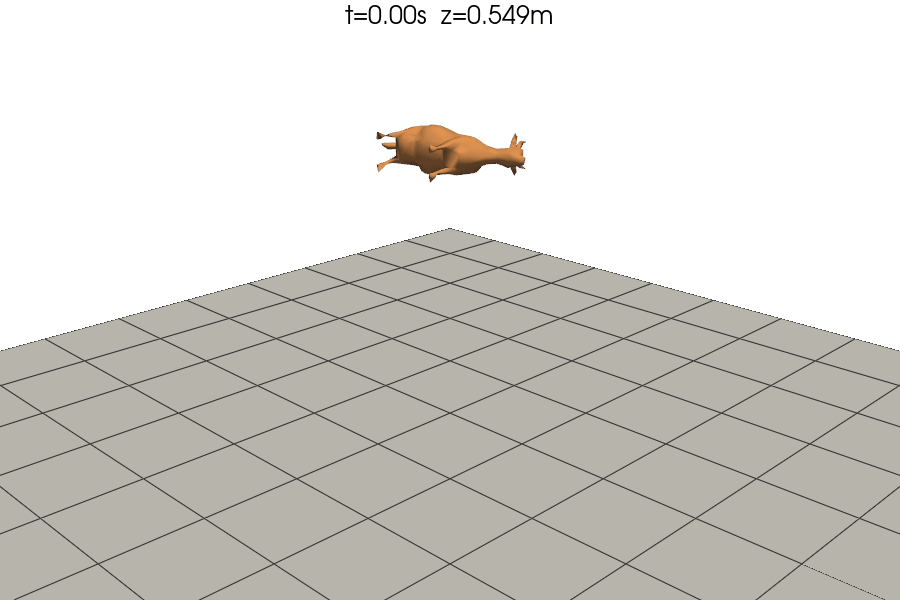

  Saved: /home/runner/work/fedoo/fedoo/examples/rigid_body_cow_bounce.gif

import os
import time
import numpy as np
import pyvista as pv

import fedoo as fd

from simcoon import Rotation  # required dependency (fedoo imports it at load)

g = 9.81
dt = 5e-4
t_end = 2.0

print("=" * 60)
print("COW BOUNCE — NonLinear + IPC contact")
print("=" * 60)

space = fd.ModelingSpace("3D")
space.new_variable("DispX")
space.new_variable("DispY")
space.new_variable("DispZ")
space.new_vector("Disp", ("DispX", "DispY", "DispZ"))

# Cow mesh
pv_cow = pv.examples.download_cow().triangulate().clean()
size = max(
    pv_cow.bounds[1] - pv_cow.bounds[0],
    pv_cow.bounds[3] - pv_cow.bounds[2],
    pv_cow.bounds[5] - pv_cow.bounds[4],
)
pv_cow = pv_cow.scale(0.3 / size, inplace=False)
pv_cow = pv_cow.translate(
    [-pv_cow.center[0], -pv_cow.center[1], -pv_cow.bounds[4] + 0.5], inplace=False
)
pv_cow = pv_cow.decimate(0.9).triangulate().clean()
cow_mesh = fd.Mesh.from_pyvista(pv_cow)

# Plane
pv_plane = pv.Plane(
    center=(0, 0, 0),
    direction=(0, 0, 1),
    i_size=2.0,
    j_size=2.0,
    i_resolution=8,
    j_resolution=8,
)
plane_mesh = fd.Mesh.from_pyvista(pv_plane.triangulate())

# Rigid body
mass = 1.0
bb = pv_cow.bounds
lx, ly, lz = bb[1] - bb[0], bb[3] - bb[2], bb[5] - bb[4]
I = (mass / 12) * np.diag([ly**2 + lz**2, lx**2 + lz**2, lx**2 + ly**2])

body = fd.constraint.RigidBody(
    cow_mesh,
    mass=mass,
    inertia_tensor=I,
    center_of_mass=np.array(pv_cow.center),
    name="Cow",
)
body.set_force([0, 0, -mass * g])
body.set_rayleigh_damping(1.5)
body.set_static_obstacle(plane_mesh, dhat=0.01)

print(f"  Cow: {cow_mesh.n_nodes} nodes, mass={mass}kg")

# Solve with NonLinear (manual stepping for trajectory)
pb = fd.problem.NonLinear(body.assembly)
pb.set_time_integrator(fd.time.SECOND_ORDER, fd.time.Newmark())
pb.initialize()

idx = body.assembly._dof_indices
q_hist = [np.zeros(6)]
t_hist = [0.0]
n_steps = int(round(t_end / dt))

t0 = time.time()
for step in range(n_steps):
    pb.dtime = dt
    pb.solve_time_increment()
    pb.set_start()
    dof = pb.get_dof_solution()
    q_hist.append(dof[idx].copy())
    t_hist.append((step + 1) * dt)
    if step % 500 == 0:
        n_c = (
            len(body.assembly._ipc_collisions)
            if body.assembly._ipc_collisions is not None
            else 0
        )
        print(
            f"    t={(step+1)*dt:.2f}s  z={body.center_of_mass[2]+dof[idx[2]]:.3f}m  contacts={n_c}"
        )

elapsed = time.time() - t0
t_hist = np.array(t_hist)
q_hist = np.array(q_hist)
z_hist = body.center_of_mass[2] + q_hist[:, 2]
print(
    f"\n  {len(t_hist)} steps in {elapsed:.1f}s ({elapsed / len(t_hist) * 1000:.1f}ms/step)"
)
print(f"  z_min={z_hist.min():.4f}m")

# Animation
_here = os.path.dirname(__file__) if "__file__" in globals() else os.getcwd()
gif_path = os.path.join(_here, "rigid_body_cow_bounce.gif")
fps = 25
frame_skip = max(1, int(1.0 / (fps * dt)))
frame_indices = np.arange(0, len(t_hist), frame_skip)

vis_cow = pv_cow.copy()
pts_ref = vis_cow.points.copy()
center = body.center_of_mass
vis_plane = pv.Plane(
    center=(0, 0, 0),
    direction=(0, 0, 1),
    i_size=2.0,
    j_size=2.0,
    i_resolution=10,
    j_resolution=10,
)

pl = pv.Plotter(window_size=[900, 600], off_screen=True)
pl.set_background("white")
pl.add_mesh(vis_plane, color="lightgrey", opacity=0.8, show_edges=True)
pl.add_mesh(vis_cow, color="sandybrown", smooth_shading=True)
pl.camera_position = [(1.5, -1.5, 1.0), (0, 0, 0.25), (0, 0, 1)]
pl.open_gif(gif_path, fps=fps)

for i in frame_indices:
    qi = q_hist[i]
    R = Rotation.from_rotvec(qi[3:]).as_matrix()
    vis_cow.points[:] = (pts_ref - center) @ R.T + center + qi[:3]
    vis_cow.GetPoints().Modified()
    pl.add_text(
        f"t={t_hist[i]:.2f}s  z={z_hist[i]:.3f}m",
        position="upper_edge",
        font_size=11,
        color="black",
        name="title",
    )
    pl.render()
    pl.write_frame()

pl.close()
print(f"  Saved: {gif_path}")
