Post-Processing

Get results from a problem

In fedoo, most of the standard results are easily exportable using the fedoo.Problem.get_results() method of the problem class.

The get_results method returns a fedoo.DataSet object which comes with several methods for plotting, saving and loading mesh dependent results.

To avoid a redundent call of the get_results function, especially for time dependent problems, one can simply add some required output with the fedoo.Problem.add_output() method. This create a MultiFrameDataSet object associated to the problem. Once the required outputs are defined for a given problem, a call to the fedoo.Problem.save_results() method allow to save all the defined fields on disk using the choosen file format, and associate the saved file to an iteration of the MultiFrameDataSet. For non linear problems solved using fedoo.Problem.nlsolve(), results are automatically saved at some iterations dependending on the choosen parameters.

The MultiFrameDataSet store the path of the saved files for each iteration in the MultiFrameDataSet.list_data attribute. The method MultiFrameDataSet.load() is called to read the data of a given iteration.

Class DataSet

DataSet([mesh, data, data_type])

Object to store, save, load and plot data associated to a mesh.

Class MultiFrameDataSet

MultiFrameDataSet([mesh, list_data])

Save data to disk

Once a DataSet is created using for instance the fedoo.Problem.get_results() method, the data can easily be saved on disk using for instance the fedoo.DataSet.save() method.

The available file types are:

  • ‘fdz’: A zipped archive containing the mesh using the ‘vtk’ format named ‘_mesh_.vtk’, and data from several iterations named ‘iter_x.npz’ where x is the iteration number (x=0 for the 1st iteration).

  • ‘vtk’: The vtk format contains the mesh and the data in a single files. The gauss points data are not included in the file. This format is efficient for a linear problem when we need only one time iteration. In case of multiple saved iterations, a directory is created and one vtk file is saved per iteration. The mesh is included in every file which is not memory efficient.

  • ‘msh’: Format associated to gmsh. Have the same drawback as the vtk format for time depend results and missing gauss points data. The vtk format should be prefered.

  • ‘npz’: Save data in a numpy file npz which doesn’t include the mesh. The mesh is generally saved beside in a raw vtk files without results.

  • ‘npz_compressed’: Same as npz with a compression of the zip archive.

  • ‘csv’: Save DataSet that contains only one type of data (ie Node, Element or Gauss point data) in a csv file (needs the library pandas installed). The mesh is not included and may be saved beside in a vtk file.

  • ‘xlsx’: Same as csv but with the excel format.

Read data from disk

To read data saved on disk, use the function read_data(). The data are imported as DataSet or MultiFrameDataSet objects depending on the imported file(s).

Example

For example, defining and solving a very simple problem :

import fedoo as fd

fd.ModelingSpace("2Dstress")
mesh = fd.mesh.rectangle_mesh()
material = fd.constitutivelaw.ElasticIsotrop(2e5, 0.3)
wf = fd.weakform.StressEquilibrium(material)
assembly = fd.Assembly.create(wf, mesh)

# Define a new static problem
pb = fd.problem.Linear(assembly)

# Boundary conditions
pb.bc.add('Dirichlet', 'left', 'Disp',    0 )
pb.bc.add('Dirichlet', 'right', 'Disp',  [0.2,0] )

# Solve problem
pb.solve()

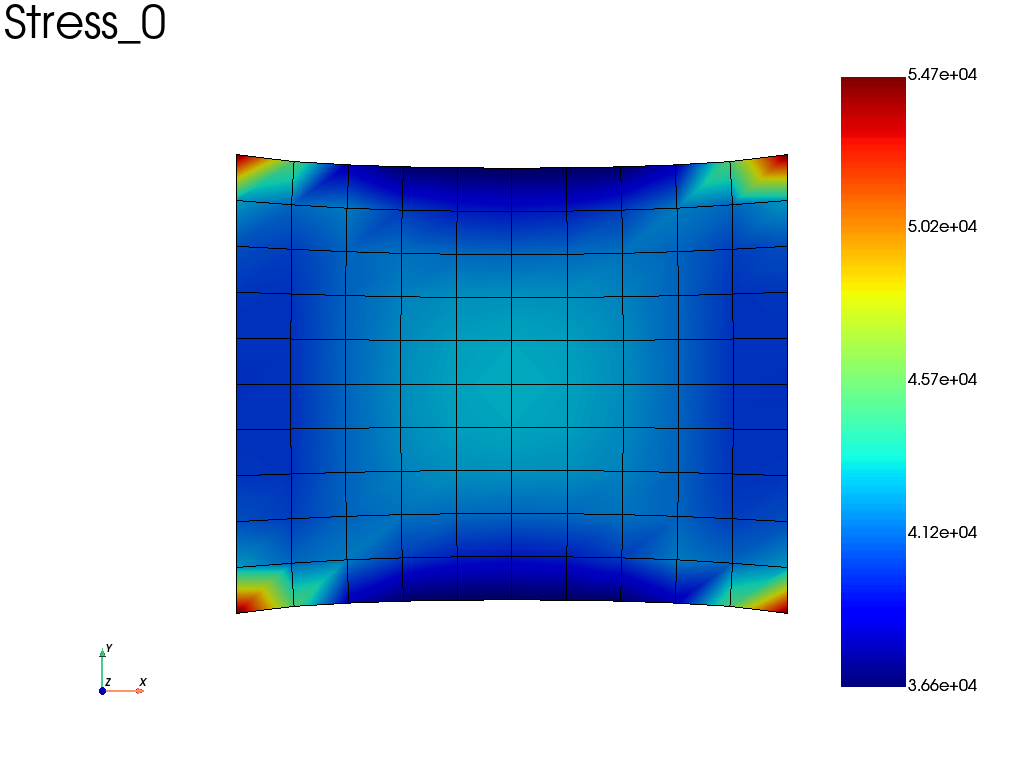

Then, we can catch the Stress, Displacement and Strain fields using:

results = pb.get_results(assembly, ["Stress", "Disp", "Strain"])
# plot the sigma_xx averaged at nodes
results.plot("Stress", component='XX', data_type='Node')
_images/example_plot_dataset.png

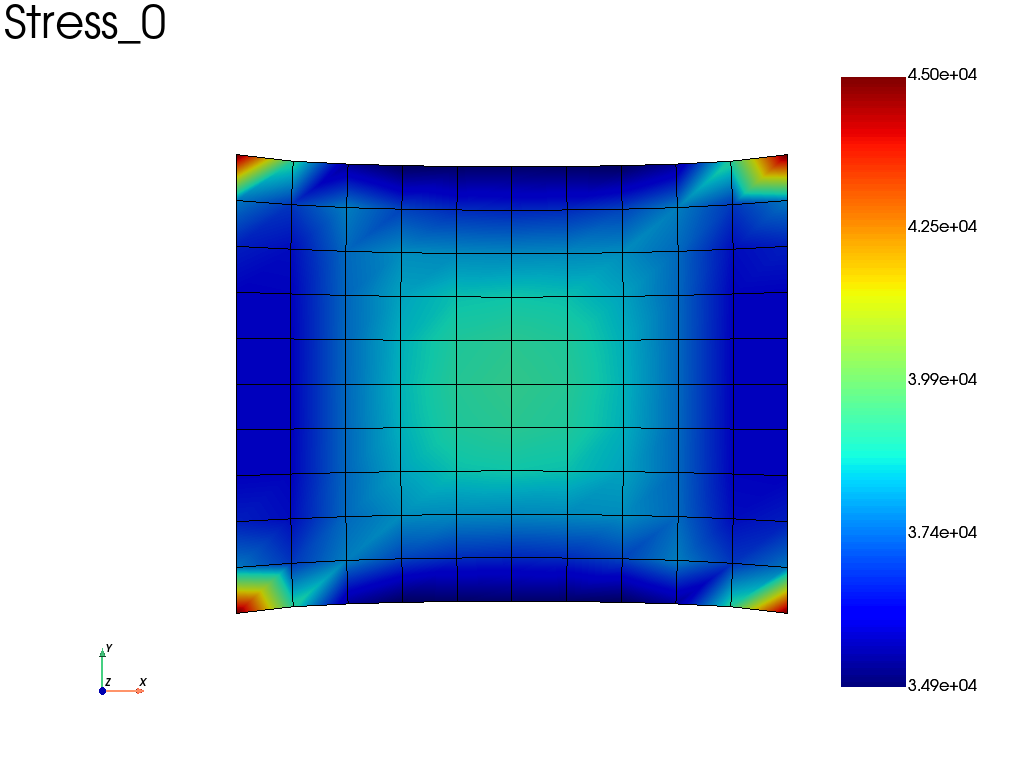

Alternatively, if we take the same problem, but accounting for geometric non linearities (nlgeom = True), we can automatically save results at specified time interval (here the results are saved on a file).

wf.nlgeom = True
pb_nl = fd.problem.NonLinear(assembly)

# Boundary conditions
pb_nl.bc = pb.bc

results_nl = pb_nl.add_output('nl_results', assembly, ["Stress", "Disp", "Strain"])

pb_nl.nlsolve(dt = 0.1, tmax = 1, interval_output = 0.2)

# plot the sigma_xx averaged at nodes at the last increment
results_nl.plot("Stress", component='XX', data_type='Node')
_images/example_plot_dataset_nl.png

Fedoo interactive viewer

Fedoo includes a graphical application to visulize a result file or a DataSet like object. To be able to launch the viewer, the package pyvistaqt has to be installed.

Then the viewer can either be launched as a standalone application from command line:

$ python -m fedoo.viewer

or from a python code. The code below show different ways to start the viewer inside a python code:

import fedoo as fd
result = fd.read_data('myfile.fdz')  # load a DataSet from file

fd.viewer()  # start the viewer with no file opened
fd.viewer(result)  # start the viewer and open the result DataSet
fd.viewer('myfile.fdz')  # start the viewer with the data from a file

The viewer includes the following tools and features:

  • Management of multiple independent windows, which can be linked together.

  • Field and iteration selectors for data exploration.

  • A wide range of plotting options.

  • Show or hide elements from predefined sets, rectangular selections, or arbitrary expressions.

  • Plot results along an interactively defined line.

  • Plot time-history data, when applicable.

  • Clip the current mesh using an interactively defined plane.

  • Save figures and create movies using the current visualization settings.

Basic operations

The principale methods/functions to extract, plot and manage result data are listed in this section.

Extract data

DataSet.get_data(field[, component, ...])

Retrieve data from the DataSet for a given field.

MultiFrameDataSet.get_history(field[, ...])

Retrieve history data from the MultiFrameDataSet.

Plotting results

A few convenient methods are proposed to generate images or movies from DataSet and MultiFrameDataSet objects.

DataSet.plot([field, component, data_type, ...])

Plot a field on the surface of the associated mesh.

MultiFrameDataSet.plot([field, component, ...])

Plot a field on the surface of the associated mesh.

MultiFrameDataSet.plot_history(field, indices)

Plot history data from the MultiFrameDataSet.

MultiFrameDataSet.write_movie([filename, ...])

Create a video from the data.

Save results

DataSet.save(filename[, save_mesh, compressed])

Save data to a file.

DataSet.savez(filename[, save_mesh])

Write a npz file using the numpy savez function.

DataSet.savez_compressed(filename[, save_mesh])

Write a compressed npz file using the numpy savez_compressed function.

DataSet.save_mesh(filename)

Save the mesh using a vtk file.

DataSet.to_csv(filename[, save_mesh])

Write data in a csv file.

DataSet.to_excel(filename[, save_mesh])

Write data in a xlsx file (excel format).

DataSet.to_vtk(filename[, binary, ...])

Write vtk file with the mesh and associated data.

DataSet.to_msh(filename)

Write a msh (gmsh format) file with mesh and associated data.

MultiFrameDataSet.save_all(filename[, ...])

Save all data from MultiFrameDataSet.

Read results

read_data(filename[, file_format])

Read a file from disk.

DataSet.read(filename[, file_format])

Read a file from disk.

DataSet.load(data[, load_mesh, iteration])

Load data from a data object.

MultiFrameDataSet.load([data, load_mesh])

Load data from a data object.

Advanced operations

Write Movies

A very simple way to write a movie from a MultiFrameDataSet is to call the embedded method MultiFrameDataSet.write_movie().

Though this method comes with lots of options, one may sometimes want to fully control the movie rendering. This is easy to do by manualy writing the movie using the pyvista library.

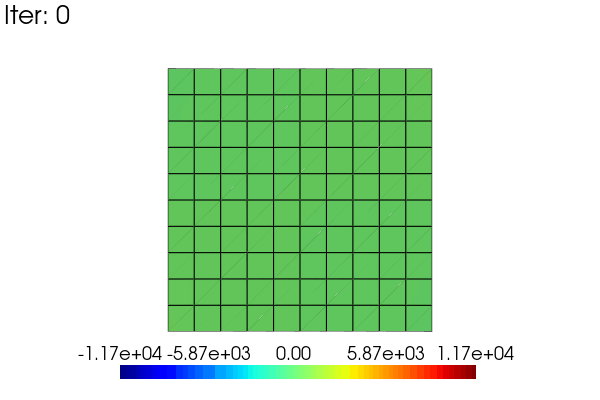

Here is an exemple to animate the linear results obtained in the problem defined above. The idea is to use a scale_factor applied to the displacement (using the scale argument) and to the stress field (modifiying the results data).

import pyvista as pv

results = pb.get_results(assembly, ['Stress', 'Disp'], 'Node')
stress = results.node_data['Stress']
clim = [stress[3].min(), stress[3].max()]  # 3 -> xy in voigt notation

pl = pv.Plotter(window_size = [600,400])
pl.open_gif("my_movie.gif", fps=20)
sargs = dict(height=0.10, position_x=0.2, position_y=0.05)
for i in range(48):
    scale_factor = (i + 1) / 48
    results.node_data["Stress"] = scale_factor * stress
    results.plot(
        "Stress",
        "XY",
        plotter=pl,
        scale=scale_factor,
        clim=clim,
        title=f"Iter: {i}",
        title_size = 10,
        scalar_bar_args=sargs,
    )
    pl.hide_axes()
    pl.write_frame()

pl.close()
_images/my_movie.gif

Multiplot feature

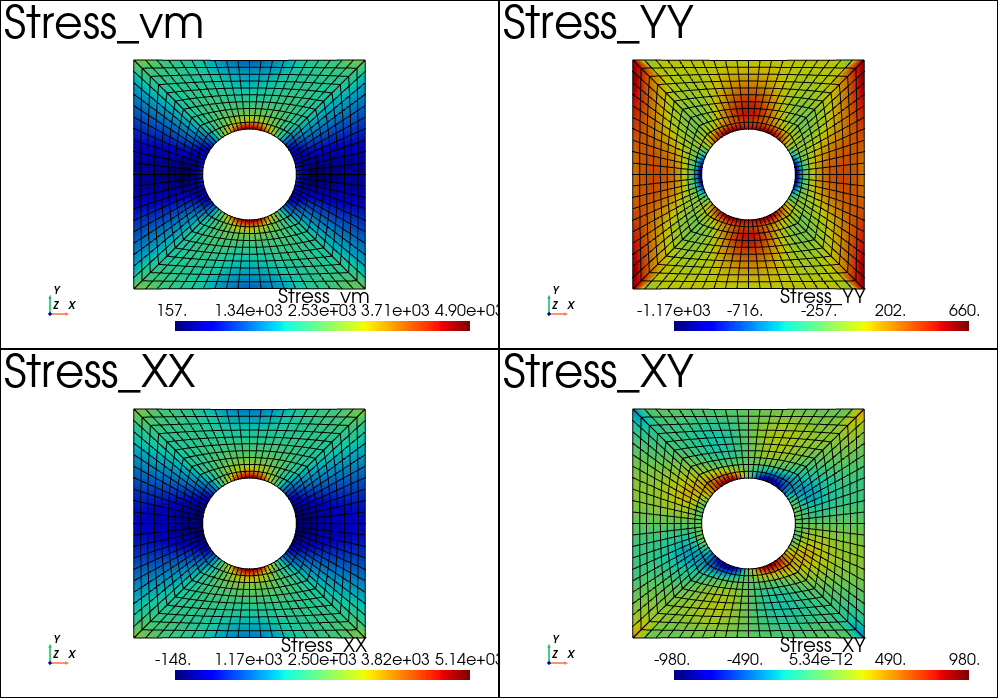

It is possible to create the plotter before calling the plot function. This allow for instance to use the pyvista multiplot capability. For instance, we can plot the stress results after the example Plate with hole in tension:

import pyvista as pv

pl = pv.Plotter(shape=(2,2))
# or using the backgroundplotter:
# from pyvistaqt import BackgroundPlotter
# pl = BackgroundPlotter(shape = (2,2))
results.plot('Stress', 'vm', 'Node', plotter=pl)
pl.subplot(1,0)
results.plot('Stress', 'XX', 'Node', plotter=pl)
pl.subplot(0,1)
results.plot('Stress', 'YY', 'Node', plotter=pl)
pl.subplot(1,1)
results.plot('Stress', 'XY', 'Node', plotter=pl)
pl.show()
_images/multiplot.png
