Mooney-Rivlin identification with the MOORI UMAT and the simcoon API

Identify the Mooney-Rivlin parameters \(C_{10}, C_{01}\) from Treloar’s rubber data using simcoon “as it ships”:

• Forward model: the real MOORI hyperelastic UMAT, driven by simcoon.solver() exactly as it would run inside a finite-element analysis (this is the same forward model as HYPER_umat.py). The transverse-equilibrium condition (zero stress on the free faces) is handled inside the solver through mixed control, so there is no hand-written fsolve loop.

• Optimizer: simcoon.identification() with method="least_squares" (bounded trust-region reflective least squares from three starting points) reading bounds from simcoon.parameter.Parameter objects.

• Cost: simcoon.calc_residuals(), the residuals whose sum of squares is simcoon.calc_cost() with the "nmse_per_response" metric.

This is the library-native counterpart of examples/analysis/hyperelastic_parameter_identification.py, which solves the same problem with a hand-rolled analytical stress and a manual scipy/sklearn cost. Both are kept on purpose: the analytical version is fast and exposes the physics; this one exercises the deployable UMAT and the identification API. See the cost-function section for the exact correspondence.

Loading / control. Each Treloar test is a homogeneous diagonal stretch run under Biot control (#Control_type(NLGEOM) 4): the prescribed “strain” is the stretch \(U_{11}\) itself and the work-conjugate Biot stress is set to zero on the free faces. That is why the load-path files read E 4.6 for equibiaxial (\(\lambda \approx 4.6\)) and hold the constrained pure-shear direction at E 1.0 (\(\lambda = 1\)).

# sphinx_gallery_thumbnail_number = 1

import os

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

import simcoon as sim
from simcoon.parameter import Parameter
from simcoon.identify import identification, calc_residuals

Configuration

The Mooney-Rivlin strain energy is

\[W = C_{10}(\bar{I}_1 - 3) + C_{01}(\bar{I}_2 - 3) + \kappa\,(J\ln J - J + 1),\]

and the MOORI UMAT takes the props vector [C10, C01, kappa]. We identify \(C_{10}\) and \(C_{01}\) and keep the bulk modulus \(\kappa\) fixed (near-incompressible rubber).

UMAT_NAME = "MOORI"
NSTATEV = 1
SOLVER_TYPE = 0          # Newton
CORATE_TYPE = 3          # log_R, the rate the hyperelastic names serve (as HYPER_umat.py)
KAPPA = 10000.0          # fixed bulk modulus [MPa]

# Treloar loading cases: label, load-path file, and the matching Treloar.txt
# columns (stretch / first Piola-Kirchhoff stress). The ``*_id`` paths use a
# coarser increment than HYPER_umat's, fast enough for many optimizer calls.
CASES = [
    ("UT", "path_UT_id.json", "lambda_1", "P1_MPa"),   # uniaxial tension
    ("PS", "path_PS_id.json", "lambda_2", "P2_MPa"),   # pure shear
    ("ET", "path_ET_id.json", "lambda_3", "P3_MPa"),   # equibiaxial tension
]

# Reference parameters (Steinmann et al., 2012) for the final comparison.
LIT = {"UT": (0.2588, -0.0449), "PS": (0.2348, -0.0650), "ET": (0.1713, 0.0047)}


def make_params():
    """Fresh Parameter pair (identification writes the result back into
    ``.value``, so every fit gets its own)."""
    # Same search box as the analytical example, for a fair comparison.
    return [
        Parameter(0, bounds=(0.01, 2.0), key="@C10"),   # C10 [MPa]
        Parameter(1, bounds=(-1.0, 1.0), key="@C01"),   # C01 [MPa]
    ]


def build_props(x):
    """MOORI props vector ``[C10, C01, kappa]`` from the optimizer array."""
    return np.array([x[0], x[1], KAPPA])

Forward model: the MOORI UMAT through sim.solver

For one loading case we run the solver over the prescribed stretch ramp and read the (lambda, P_11) trajectory straight from its global output. Because the experimental points sit at specific stretches, we interpolate the (smooth) model trajectory onto the experimental lambda values. A tab-file replay, as in chaboche_cyclic_identification.py, could hit the experimental stretches exactly; interpolation keeps the load paths simple.

def run_case(props, programme):
    """Run one case and return its ``(lambda, P_11)`` trajectory.

    ``programme`` is the ``(blocks, T_init)`` pair ``load_path_json`` read once per case —
    an identification evaluates this thousands of times, and none of them touches the
    disk. The two quantities compared with the experiment are built from the
    histories: the largest isochoric principal stretch, and the 11 component of the
    nominal stress :math:`P = J\\,\\sigma\\,F^{-T}`.
    """
    blocks, T_init = programme
    res = sim.solver.solve(
        blocks, UMAT_NAME, props, NSTATEV, T_init=T_init,
        solver_type=SOLVER_TYPE, corate=CORATE_TYPE,
    )

    F_hist, sigma_hist = res["F"], res["Stress"]
    lam = np.empty(len(res))
    pk1_11 = np.empty(len(res))
    for k in range(len(res)):
        F = np.ascontiguousarray(F_hist[:, :, k])
        V, _ = sim.VR_decomposition(F)
        lam[k] = np.asarray(sim.isochoric_pstretch(np.ascontiguousarray(V))).ravel()[-1]
        sigma = sim.v2t_stress(np.ascontiguousarray(sigma_hist[:, k]))
        pk1_11[k] = np.asarray(sim.stress_convert(sigma, F, "Cauchy2PKI"))[0, 0]
    return lam, pk1_11


def model_pk1(lambda_exp, props, programme):
    """Model ``P_11`` sampled at the experimental stretches."""
    lam, pk1 = run_case(props, programme)
    # Anchor the unstressed reference state so lambda = 1 maps to P_11 = 0.
    lam = np.concatenate(([1.0], lam))
    pk1 = np.concatenate(([0.0], pk1))
    return np.interp(lambda_exp, lam, pk1)

Residuals: sim.calc_residuals with NMSE-per-response

The analytical example (examples/analysis/hyperelastic_parameter_identification.py) builds its combined cost by hand: for each loading case it takes the mean_squared_error and divides by the variance of the experimental data (an NMSE), then sums the cases. simcoon.calc_cost() with metric="nmse_per_response" normalises per response column instead: the three tests share one stress column here, so the cost is the summed squared error of UT, PS and ET divided by their summed squared stresses. The tests are pooled, not normalised one by one: the case with the largest stresses weighs most (w_test can rebalance them).

The least-squares optimizer works on the residuals themselves: simcoon.calc_residuals() returns, with the same arguments, the vector whose sum of squares is calc_cost. Both expect one 2-D array of shape (n_points, n_responses) per test; with a single stress response per test the arrays are (n_points, 1).

def residuals(x, jobs):
    """NMSE-per-response residuals over the loading cases in *jobs*.

    *jobs* is a list of ``(name, programme, lambda_exp, P_exp)`` tuples, ``programme``
    the parsed ``(blocks, T_init)`` of the case.
    """
    props = build_props(x)
    y_exp, y_num = [], []
    for _name, programme, lam_exp, P_exp in jobs:
        try:
            P_model = model_pk1(lam_exp, props, programme)
        except Exception:
            # NaN residuals: the optimizer rejects the step and shrinks it
            return np.full(sum(len(job[3]) for job in jobs), np.nan)
        y_exp.append(P_exp.reshape(-1, 1))
        y_num.append(P_model.reshape(-1, 1))
    return calc_residuals(y_exp, y_num, metric="nmse_per_response")


def identify(jobs, n_starts=3, seed=42):
    """Run ``sim.identification`` over the given *jobs*; return ``([C10, C01],
    final_cost)``."""
    params = make_params()
    result = identification(
        residuals, params, method="least_squares",
        args=(jobs,), n_starts=n_starts, seed=seed,
    )
    return [p.value for p in params], float(np.sum(result.fun ** 2))

Driver

Two identification strategies, mirroring the analytical example:

1. Individual — one (C10, C01) pair fitted to each loading case.

2. Combined — a single pair fitted to all three cases at once.

def main():
    try:
        script_dir = os.path.dirname(os.path.abspath(__file__))
    except NameError:
        script_dir = os.getcwd()
    os.chdir(script_dir)

    path_data = "data"

    df = pd.read_csv(
        os.path.join("comparison", "Treloar.txt"),
        sep=r"\s+", engine="python",
        names=["lambda_1", "P1_MPa", "lambda_2", "P2_MPa", "lambda_3", "P3_MPa"],
        header=0,
    )

    # Per-case experimental (lambda, P_11), NaNs dropped, and the loading programme of
    # each case parsed once for every evaluation to come.
    exp, programmes = {}, {}
    for name, pathfile, lc, pc in CASES:
        mask = ~df[lc].isna() & ~df[pc].isna()
        exp[name] = (df.loc[mask, lc].values, df.loc[mask, pc].values)
        programmes[name] = sim.solver.load_path_json(os.path.join(path_data, pathfile))[:2]

    print("=" * 66)
    print(" MOONEY-RIVLIN IDENTIFICATION via the MOORI UMAT + simcoon API")
    print(" forward: sim.solver | cost: sim.calc_cost(nmse_per_response)")
    print("=" * 66)
    for name, _pf, _lc, _pc in CASES:
        lam, P = exp[name]
        print(f"  {name}: {len(lam)} pts, lambda in [{lam.min():.2f}, {lam.max():.2f}]")

    # ----- Individual fits ------------------------------------------------ #
    print("\n" + "-" * 66)
    print(" INDIVIDUAL FITS (one parameter set per loading case)")
    print("-" * 66)
    print(f"{'Case':<6}{'C10':>10}{'C01':>10}{'C10 lit.':>12}{'C01 lit.':>12}{'NMSE':>12}")
    individual = {}
    for name, _pf, _lc, _pc in CASES:
        lam_exp, P_exp = exp[name]
        (c10, c01), cost_i = identify([(name, programmes[name], lam_exp, P_exp)])
        individual[name] = (c10, c01)
        l10, l01 = LIT[name]
        print(f"{name:<6}{c10:>10.4f}{c01:>10.4f}{l10:>12.4f}{l01:>12.4f}{cost_i:>12.4e}")

    # ----- Combined fit --------------------------------------------------- #
    print("\n" + "-" * 66)
    print(" COMBINED FIT (single parameter set for UT + PS + ET)")
    print("-" * 66)
    jobs = [(n, programmes[n], *exp[n]) for n, _pf, _lc, _pc in CASES]
    (c10_c, c01_c), cost_c = identify(jobs)
    print(f"  C10 = {c10_c:.4f} MPa, C01 = {c01_c:.4f} MPa  "
          f"(NMSE/response = {cost_c:.4e})")

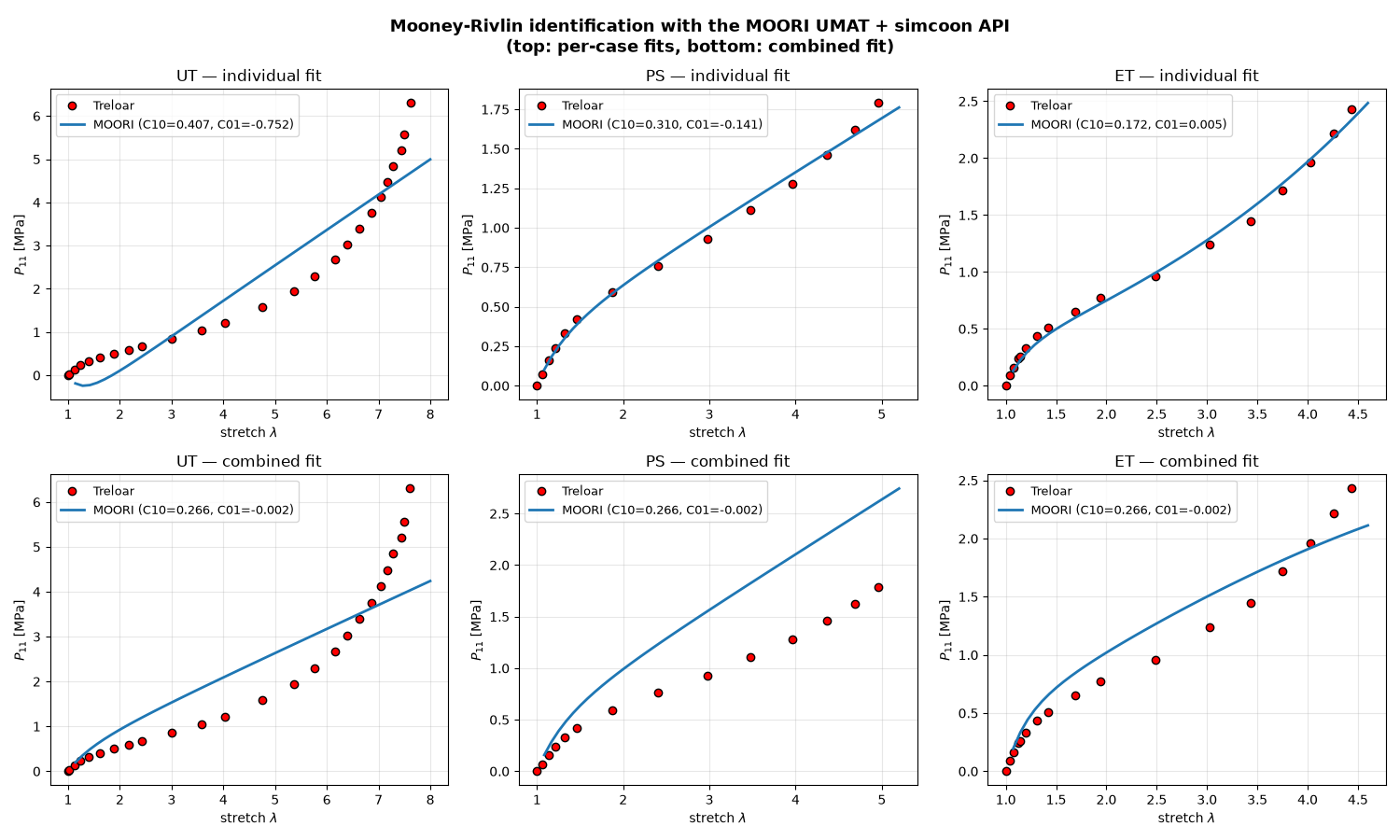

    # ----- Plot: individual (top) and combined (bottom) vs Treloar -------- #
    fig, axes = plt.subplots(2, 3, figsize=(15, 9))
    for col, (name, _pf, _lc, _pc) in enumerate(CASES):
        lam_exp, P_exp = exp[name]
        for row, (c10, c01, tag) in enumerate([
            (*individual[name], "individual"),
            (c10_c, c01_c, "combined"),
        ]):
            ax = axes[row, col]
            lam_m, pk1_m = run_case(build_props([c10, c01]), programmes[name])
            ax.plot(lam_exp, P_exp, "o", ms=6, mfc="red", mec="black",
                    label="Treloar")
            ax.plot(lam_m, pk1_m, "-", lw=2, color="tab:blue",
                    label=f"MOORI (C10={c10:.3f}, C01={c01:.3f})")
            ax.set_xlabel(r"stretch $\lambda$")
            ax.set_ylabel(r"$P_{11}$ [MPa]")
            ax.set_title(f"{name} — {tag} fit")
            ax.grid(True, alpha=0.3)
            ax.legend(loc="upper left", fontsize=9)

    fig.suptitle(
        "Mooney-Rivlin identification with the MOORI UMAT + simcoon API\n"
        "(top: per-case fits, bottom: combined fit)",
        fontsize=13, fontweight="bold",
    )
    plt.tight_layout()
    plt.show()


if __name__ == "__main__":
    main()

==================================================================
 MOONEY-RIVLIN IDENTIFICATION via the MOORI UMAT + simcoon API
 forward: sim.solver | cost: sim.calc_cost(nmse_per_response)
==================================================================
  UT: 25 pts, lambda in [1.00, 7.61]
  PS: 14 pts, lambda in [1.00, 4.96]
  ET: 17 pts, lambda in [1.00, 4.44]

------------------------------------------------------------------
 INDIVIDUAL FITS (one parameter set per loading case)
------------------------------------------------------------------
Case         C10       C01    C10 lit.    C01 lit.        NMSE
UT        0.3395   -0.3395      0.2588     -0.0449  5.2715e-02
PS        0.2886   -0.1189      0.2348     -0.0650  2.2201e-03
ET        0.1716    0.0047      0.1713      0.0047  2.0245e-03

------------------------------------------------------------------
 COMBINED FIT (single parameter set for UT + PS + ET)
------------------------------------------------------------------
  C10 = 0.2662 MPa, C01 = -0.0017 MPa  (NMSE/response = 8.2498e-02)
