Closest-Point Projection — Non-Proportional Loading

tangent_mode=3 replaces the cutting-plane local loop of the MODUL UMAT by a closest-point projection: the plastic strain uses the flow direction of the converged state, and the consistent tangent is the exact Jacobian of the discrete update for every criterion with a flow Hessian and every hardening law. The cutting-plane loop (modes 1 and 2) accumulates the plastic strain along the direction of each Newton iterate; the two integrators coincide only when that direction does not rotate within the increment — von Mises with isotropic hardening (radial return).

Under a non-proportional path the direction rotates in every increment. The loading here is a figure-eight in the (axial strain, shear strain) plane, \(\varepsilon_{11} = a \sin t\), \(\gamma_{12} = b \sin 2t\), the other four stress components free, applied to a ladder of models of growing complexity: J2 + Voce (radial), J2 + Armstrong–Frederick, J2 + two-term Chaboche, Hill + Armstrong–Frederick.

Three things are measured, mode 2 against mode 3, and printed as a table:

1. the error of the coarse-increment response against a fine reference — both integrators are first order in the increment; where the flow direction rotates, the closest-point one has the smaller constant;

2. the convergence of a global Newton iteration driven by each tangent — the same figure-eight prescribed in stress, solved with a Python Newton over simcoon.umat() — linear with the mode-2 operator, quadratic with the exact mode-3 one;

3. the cost per increment through the solver: the closest-point branch solves state and stress together, which is the price of the exactness. In a finite-element run the global linear solves dominate, and their number is the Newton iteration count of 2.

import time

import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
import numpy as np

import simcoon as sim
from simcoon.solver import StepMeca, solve
from simcoon.modular import (
    ModularMaterial,
    IsotropicElasticity,
    Plasticity,
    VonMisesYield,
    HillYield,
    VoceHardening,
    LinearIsotropicHardening,
    ArmstrongFrederickHardening,
    ChabocheHardening,
)

plt.rcParams["figure.figsize"] = (13, 10)

1. The ladder of models

Same elastic block and initial yield stress everywhere; only the flow direction’s behaviour within an increment changes: fixed (radial return) for J2 + isotropic hardening, rotating with the backstress for kinematic hardening, rotating with the anisotropic criterion for Hill.

E, nu, sigma_Y = 70000.0, 0.3, 200.0


def material(plasticity):
    return ModularMaterial(elasticity=IsotropicElasticity(C1=E, C2=nu), mechanisms=[plasticity])


MATERIALS = {
    "J2 + Voce": material(Plasticity(
        sigma_Y=sigma_Y, yield_criterion=VonMisesYield(),
        isotropic_hardening=VoceHardening(Q=100.0, b=20.0))),
    "J2 + Armstrong-Frederick": material(Plasticity(
        sigma_Y=sigma_Y, yield_criterion=VonMisesYield(),
        isotropic_hardening=LinearIsotropicHardening(H=500.0),
        kinematic_hardening=ArmstrongFrederickHardening(C=30000.0, D=150.0))),
    "J2 + Chaboche (2)": material(Plasticity(
        sigma_Y=sigma_Y, yield_criterion=VonMisesYield(),
        isotropic_hardening=VoceHardening(Q=100.0, b=20.0),
        kinematic_hardening=ChabocheHardening(terms=((30000.0, 150.0), (5000.0, 10.0))))),
    "Hill + Armstrong-Frederick": material(Plasticity(
        sigma_Y=sigma_Y, yield_criterion=HillYield(F=0.5, G=0.7, H=0.4, L=1.6, M=1.3, N=1.8),
        isotropic_hardening=LinearIsotropicHardening(H=500.0),
        kinematic_hardening=ArmstrongFrederickHardening(C=30000.0, D=150.0))),
}
MODES = {2: ("algorithmic (cutting plane)", "tab:red"), 3: ("closest-point", "tab:blue")}

2. The figure-eight in strain space

A tabular step: one row per increment, columns [time, eps11, gamma12]; the four other components are stress-free (“zero”).

a, b = 0.01, 0.015


def figure_eight(n_inc):
    t = np.linspace(0.0, 2.0 * np.pi, n_inc + 1)[1:]
    return np.column_stack([t, a * np.sin(t), b * np.sin(2.0 * t)])


def run(mat, n_inc, mode):
    step = StepMeca(control=["strain", "zero", "zero", "strain", "zero", "zero"],
                    mode="tabular", tabular=figure_eight(n_inc))
    t0 = time.perf_counter()
    res = solve(step, "MODUL", mat.props, mat.nstatev, T_init=293.0, tangent_mode=mode)
    return res, (time.perf_counter() - t0) / n_inc

3. Accuracy at coarse increments

The reference is a run with N_FINE increments (a multiple of every coarse count, so the coarse times are exact subsets of its times); the two integrators agree there, and their residual gap is printed. The error is measured on the (sigma11, sigma12) components.

N_FINE, N_COARSE, N_SHOW = 4096, (16, 32, 64, 128), 32
errors = {name: {mode: [] for mode in MODES} for name in MATERIALS}
cost = {name: {} for name in MATERIALS}
responses = {name: {} for name in MATERIALS}
fine_gap = {}
for name, mat in MATERIALS.items():
    fine = {mode: run(mat, N_FINE, mode)[0]["Stress"][[0, 3]] for mode in MODES}
    s_ref = fine[3]
    responses[name]["ref"] = s_ref
    fine_gap[name] = np.linalg.norm(fine[2] - fine[3]) / np.linalg.norm(s_ref)
    for n in N_COARSE:
        idx = np.arange(1, n + 1) * (N_FINE // n) - 1
        for mode in MODES:
            res, per_inc = run(mat, n, mode)
            s = res["Stress"][[0, 3]]
            errors[name][mode].append(np.linalg.norm(s - s_ref[:, idx]) / np.linalg.norm(s_ref[:, idx]))
            if n == N_SHOW:
                responses[name][mode] = s
            if n == N_COARSE[-1]:
                cost[name][mode] = per_inc

4. Global Newton convergence under stress control

The figure-eight prescribed in stress (sigma11 = A sin t, sigma12 = B sin 2t, the rest zero) and solved increment by increment with a Newton iteration on the strain increment, using the tangent each mode returns. This is what an implicit finite-element solver does at every Gauss point: the number of iterations is the number of global linear solves. The amplitudes keep the equivalent stress clear of the Voce saturation (sigma_Y + Q), where a stress-driven Newton is ill-posed whatever the tangent (hardening slope -> 0).

A_SIG, B_SIG, N_NEWTON, TOL = 230.0, 85.0, 48, 1.0e-8 * sigma_Y   # TOL above the local tolerance


def umat_point(mat, eps, De, sig, sv, Wm, mode):
    """One material point through sim.umat, whose arguments are (6, N) column batches of
    Gauss points, at the temperature of section 3; start=False keeps the reference
    temperature and the works of the running simulation."""
    col = lambda v: np.asfortranarray(np.asarray(v, dtype=float).reshape(-1, 1))
    I3 = np.eye(3).reshape(3, 3, 1).copy(order="F")
    s, sv_new, Wm_new, Lt = sim.umat("MODUL", col(eps), col(De), I3, I3, col(sig), I3,
                                     col(mat.props), col(sv), 1.0, 1.0, col(Wm),
                                     temp=np.full(1, 293.0), n_threads=1, tangent_mode=mode,
                                     start=False)
    return s[:, 0], sv_new[:, 0], Wm_new[:, 0], Lt[:, :, 0]


def stress_driven_newton(mat, mode):
    t = np.linspace(0.0, 2.0 * np.pi, N_NEWTON + 1)[1:]
    targets = np.zeros((N_NEWTON, 6))
    targets[:, 0], targets[:, 3] = A_SIG * np.sin(t), B_SIG * np.sin(2.0 * t)
    eps, sig = np.zeros(6), np.zeros(6)
    sv, Wm = np.r_[293.0, np.zeros(mat.nstatev - 1)], np.zeros(4)
    iterations, histories = [], []
    for target in targets:
        De, history = np.zeros(6), []
        for it in range(50):
            try:
                s, sv_new, Wm_new, Lt = umat_point(mat, eps, De, sig, sv, Wm, mode)
            except sim.StepCut:   # a trial too far for the local solve: shorten it, as a solver would
                De = 0.5 * De
                continue
            residual = s - target
            history.append(np.linalg.norm(residual))
            if history[-1] < TOL:
                break
            De = De - np.linalg.solve(Lt, residual)
        iterations.append(it + 1)
        histories.append(history)
        eps, sig, sv, Wm = eps + De, s, sv_new, Wm_new
    return np.array(iterations), histories


newton = {name: {mode: stress_driven_newton(mat, mode) for mode in MODES}
          for name, mat in MATERIALS.items()}

print(f"{'model':28s} {'mode':4s} {'err @%d inc' % N_SHOW:>12s} {'Newton it. mean/max':>20s} "
      f"{'us/inc @%d' % N_COARSE[-1]:>12s}   fine-run gap")
for name in MATERIALS:
    for mode in MODES:
        it = newton[name][mode][0]
        print(f"{name:28s} {mode:<4d} {errors[name][mode][N_COARSE.index(N_SHOW)]:12.2e} "
              f"{it.mean():11.2f} / {it.max():<6d} {cost[name][mode] * 1e6:12.1f}   "
              + (f"{fine_gap[name]:.1e}" if mode == 2 else ""))

model                        mode  err @32 inc  Newton it. mean/max  us/inc @128   fine-run gap
J2 + Voce                    2        1.19e-01        2.23 / 5              44.9   3.5e-14
J2 + Voce                    3        1.19e-01        2.23 / 5              79.1
J2 + Armstrong-Frederick     2        1.13e-01        3.58 / 7              64.4   6.8e-04
J2 + Armstrong-Frederick     3        6.61e-02        3.29 / 5             106.8
J2 + Chaboche (2)            2        9.66e-02        3.29 / 6              68.4   5.5e-04
J2 + Chaboche (2)            3        5.72e-02        3.21 / 5             113.8
Hill + Armstrong-Frederick   2        1.18e-01        4.35 / 8              88.7   7.9e-04
Hill + Armstrong-Frederick   3        6.47e-02        3.54 / 5             153.6

5. Plots

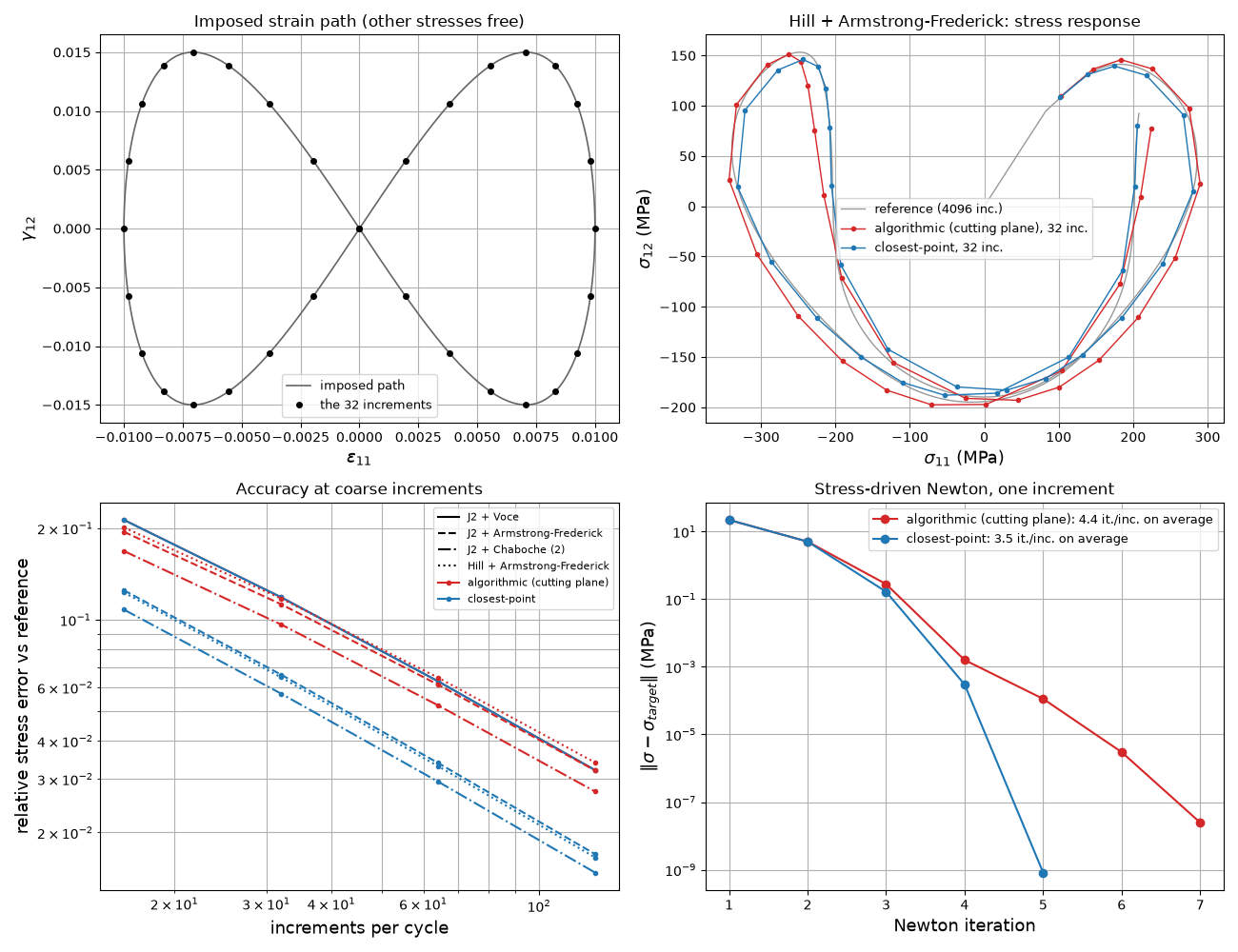

Top left: the imposed strain path (the figure-eight, with the N_SHOW increments marked). Top right: the stress response of Hill + AF to it at N_SHOW increments per cycle, against the reference. Bottom left: error vs number of increments for the ladder (line style = model, colour = mode). Bottom right: residual history of one stress-driven Newton increment for Hill + AF.
